BPA-Free Value T04E Universal .63 A/R Inernal Wastegate Turbocharger + Intercooler

* This is universal application turbo. so modification might be required for some vehicles.

T04E Turbocharger with Internal Wastegate

Exhaust (Turbo Manifold) Flange: Standard T3/ T4 4-Bolt
Exhaust (Downpipe) Flange: Standard 2.50″ Inner Diameter V-Band
Intake Inlet/ Outlet: 3.00″/ 2.00″

Compressor:
Trim: 44
Inducer Diameter:50.5 mm
Exducer Diameter:76 mm
A/R:0.5

Turbine
Trim:73
Inducer Diameter:65.5 mm
Exducer Diameter:55.9 mm
A/R:0.63

2.5″ Universal Aluminum Intercooler Pipe

-Made out of high quality of 6061 aluminum Manual polishing finished
-Manufactured from high quality aluminum for durable use:
-Straight Layout and Appropriate Pipes’ Radius lead to less pressure loss
-High Pressure Resistant Hoses bring out high performance of intercooler
-All pipes are well externally polished
-All intercoolers are bar & plate design for better cooling efficiency
-Professional Installation Is Highly Recommended
-Pipe Thickness: 1.8mm
-Pipe length: 18″

27x7x2.5 2.5″ Universal Intercooler

-Inlet/outlet size: 2.5″
-Core size: 21″x 7″x 2.5″
-Full size: 27.00″ (L) X 7.00″ (H) X 2.50″(W)
-Compress Air Flow Rate<350Cubic Feet/Min. Rated up to500 Max HP
-Pressure drop: 2~5psiat35psi. 0.2~0.5psiat15psi
-Material: Aluminum alloy
-Core design: Tube & Fin

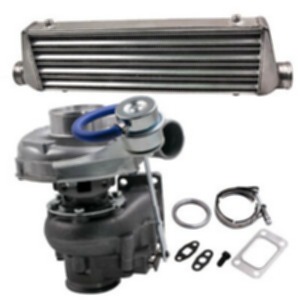

Package include

1x T04E V-Band Turbocharger
1x 27x7x2.5 2.5″ Universal Intercooler
2x 90 Degree Aluminum Pipe 2.5″
2x Straight aluminum pipe 2.5″
2x 135 Degree Aluminum Pipe×2 2.5″
2x U Aluminum Pipe×2 2.5″
6x Straight Silicon Hose 2.5″ (Blue )
2x 90 Degree Silicone Hose×2 2.5″(Blue )
16x Clamps 2.5″

Condition: 100% Brand New
Bearing Type: Floating Bearing
Warranty: 2 Years
Accessories: You will get exactly as shown in the picture above

* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us
